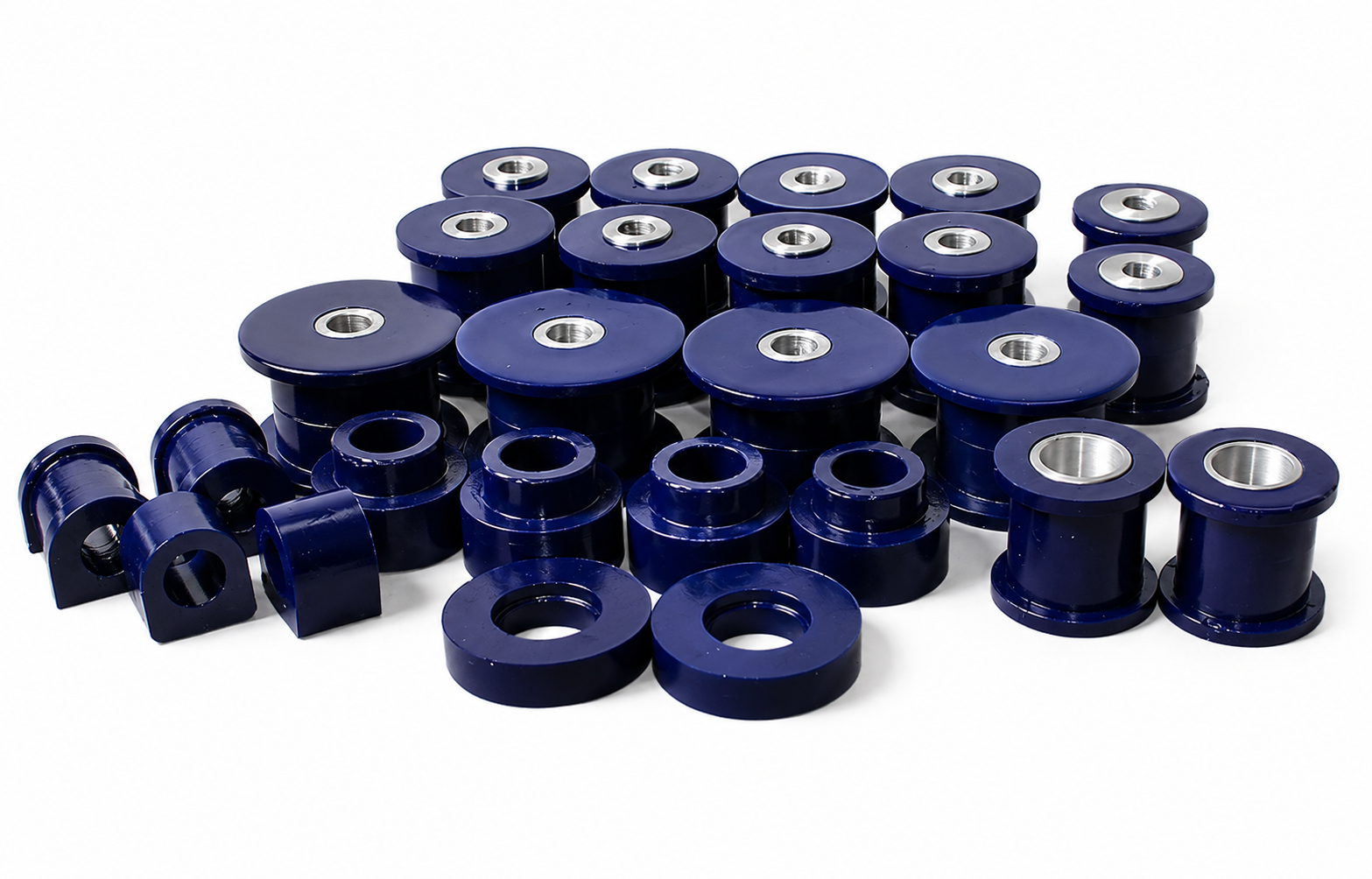

Nissan Patrol GR Y60 Y61 2.8 TD PU Bushing Kit XXL Off Road

• Nissan

• Patrol Y60
• Patrol Y61

Master any terrain with maximum control! With the ultimate XXL complete kit of high-strength polyurethane (PU) bushings in the Blue Offroad version, you can equip your Nissan Patrol Y60 or Y61 (2.8) for the toughest challenges. While conventional rubber bushings give way under extreme articulation, heavy loads, and hard impacts, our off-road solution ensures uncompromising axle guidance and lasting stability in rough terrain.

Our blue performance version (85 ShA) ensures exact axle geometry even under extreme conditions and completely eliminates spongy handling on the trail.

Why this XXL Complete Kit (85 ShA)?

The increased hardness of 85 ShA was specifically developed for off-road enthusiasts who regularly drive in challenging terrain, on demanding expeditions or rallies. The kit offers significantly higher stiffness and resistance than the standard series.

• Maximum Resistance: Extremely tear and abrasion resistant, ideal for maximum mechanical loads during strong articulation and hard impacts on the trail.

• Precise Axle Guidance: Maintains exact axle geometry even at extreme angles and effectively prevents the "wandering" of solid axles.

• Weather and Chemical Resistant: Absolutely impervious to mud, water, oil, UV radiation, and extreme temperature fluctuations.

• Durability: These bushings retain their dimensional stability for years, do not wear out, and do not become brittle like standard rubber.

⚠️ IMPORTANT NOTE: Measure stabilizer diameter!

Different stabilizers were installed ex-works on Patrol models. Please measure the diameter of your front and rear axle stabilizers before purchasing so we can send you the correct bushings!

Simply select the appropriate measurements when ordering:

• Front axle diameter: optionally Ø 15 mm, Ø 21 mm or Ø 24 mm

• Rear axle diameter: optionally Ø 15 mm or Ø 17 mm

Scope of delivery (XXL chassis bushing set)

The set contains all bushings for the front and rear axles, including the necessary metal sleeves:

1. Front trailing arms (axle connection): 4x PU bushings + 4x metal sleeves

2. Rear front trailing arms (frame connection): 4x PU bushings

3. Front Panhard rod: 2x PU bushings + 2x metal sleeves

4. Rear Panhard rod: 2x PU bushings + 2x metal sleeves

5. Rear upper trailing arms: 4x PU bushings + 4x metal sleeves

6. Rear lower trailing arms: 4x PU bushings + 4x metal sleeves

7. Lower trailing arms (frame side/spacers): 2x PU bushings

8. Front stabilizer: 2x PU bushings (size as selected)

9. Rear stabilizer: 2x PU bushings (size as selected)

Compatible vehicle models

• Nissan Patrol Y60: Model years 1987 – 1997 (2.8-liter engine)

• Nissan Patrol Y61: Model years 1998 – 2000 (2.8-liter engine)
