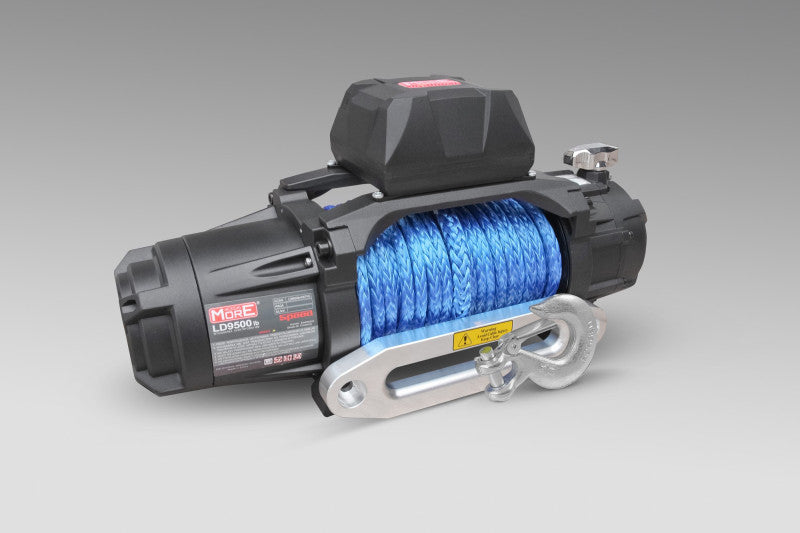

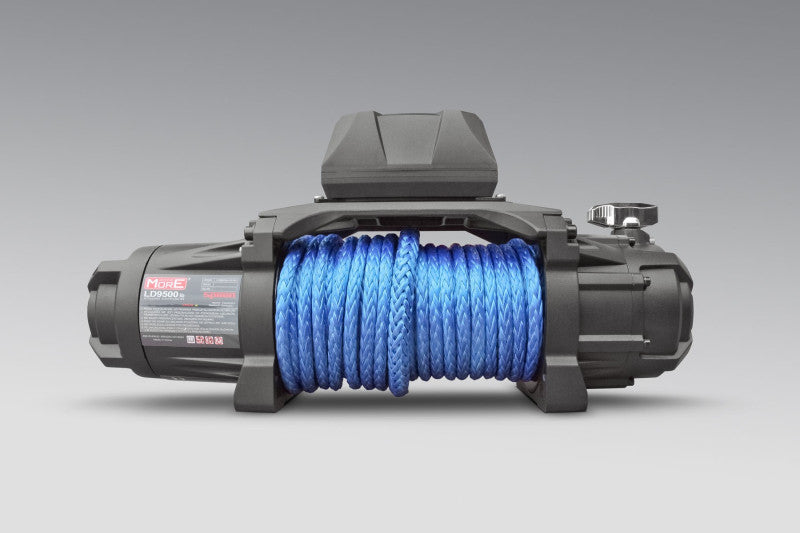

Winch MorE 4x4 SPEED 9500lbs 12V Synthetic Rope
839,95 €
Skip to product information
Winch MorE 4x4 SPEED 9500lbs 12V Synthetic Rope
839,95 €
Taxes included.
Shipping calculated at checkout.
The More 4x4 9500 ECONO electric winch offers a solid and robust construction, designed for tough daily use in combination with a reliable 5.5 HP motor. It is a proven tool on car transporters, fire engines, and off-road vehicles. The 9500 ECONO has been successfully tested many times by participants of extreme off-road rallies under the most difficult conditions and is also used on special vehicles and light trucks.
This model comes standard with a lightweight and safe synthetic rope. A big advantage for installation: the separate, non-integrated relay box allows for uncomplicated and highly flexible mounting even in very confined spaces, such as inside off-road bumpers.
The highlights of the 9500 ECONO at a glance:
- Advantage of synthetic rope & fairlead: Significantly safer handling without risk of injury from protruding wires, and a lower overall weight on the front axle.
- Flexible mounting freedom: Thanks to the external control box, the winch can be concealed excellently where space above the drum is limited.
- Reliable 5.5 HP motor: With 4.0 kW of power, it delivers consistent and battery-saving performance during tough recoveries.
- Full 5-year warranty: The manufacturer provides a comprehensive 5-year warranty on every More 4x4 electric winch.
Technical data:
- Maximum pulling force: 4,318 kg (9,500 lbs)
- Motor: 5.5 HP / 4.0 kW (DC 12V)

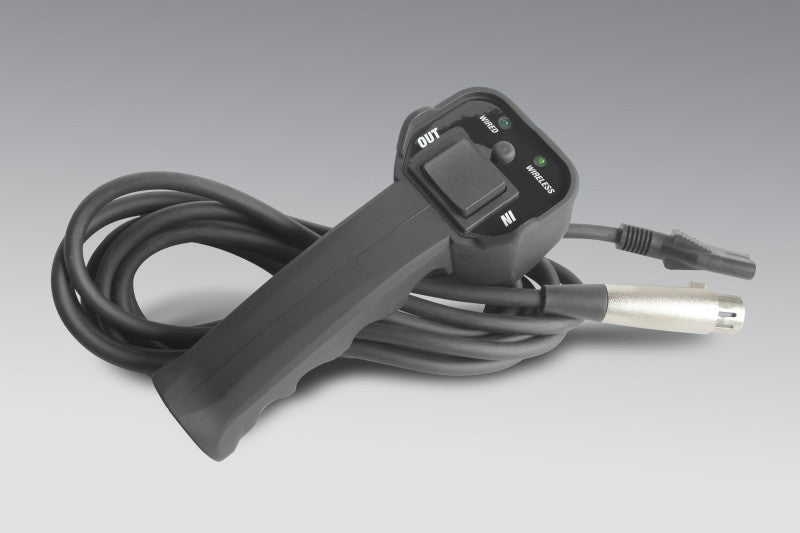

- Control: Wired remote control (3.7 m cable) & wireless remote control
- Gearbox: 3-stage planetary gear
- Gear ratio: 218:1
- Brake: Automatic, built into the drum
- Drum dimensions: Diameter 63.5 mm / Length 224 mm
- Rope: High-quality synthetic rope (27 meters length × 9.5 mm diameter)
- Rope guide: Smooth aluminum fairlead
- Power cable: 38.5 mm², length 183 cm
- Weight: 28.0 kg
- Dimensions (W x D x H): 530 x 160 x 218 mm (incl. lever)
- Mounting bolt pattern: Standard 254 x 114 mm
- Recommended battery: Minimum 64 Ah
Performance values (rope speed and current draw on the 1st rope layer):
| Load (kg) | Rope speed (m/min) | Current draw (A) |
|---|---|---|
| 0 (no load) | 6.8 | 74 |
| 1,079 | 3.1 | 150 |
| 2,159 | 2.68 | 224 |
| 3,238 | 1.89 | 260 |
| 4,310 | 1.46 | 350 |
Pulling force and rope capacity by rope layer:
| Rope layer | Pulling force on layer (kg) | Rope quantity on drum (m) |
|---|---|---|
| 1 | 4,310 | 5.59 |
| 2 | 3,507 | 12.47 |
| 3 | 2,953 | 20.63 |
| 4 | 2,549 | 28.0 |
